I. Background and Challenges: Precision Issues in Chemical Level Measurement In modern chemical, petroleum, and pharmaceutical industries, liquid level monitoring in storage tanks is vital for production efficiency and operational safety. Traditional measurement devices, such as ultrasonic sensors or low-frequency pulse radars, often struggle with internal agitators, complex cooling coils, and surface foam or steam. Especially when measuring highly corrosive or low-dielectric constant chemical media, the stability and long-term anti-interference capability of the instrument are core pain points for enterprises. HCCK (HuaChuang Measurement and Control) has engineered the HCDAR-80 80GHz high-frequency radar level meter to solve these critical measurement requirements.

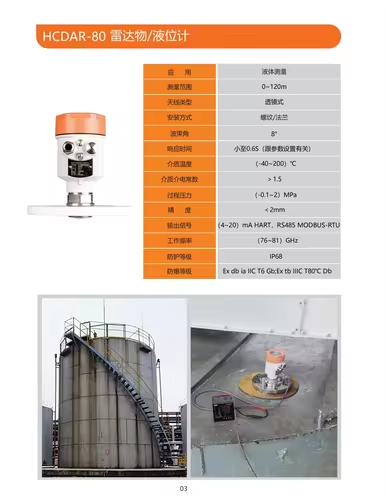

HCDAR-80 radar level meter supports 80GHz FMCW technology, enabling millimeter-level precision in various industrial storage tanks.

II. Technical Solution: 80GHz FMCW and Ultra-Narrow Beam Angle The HCDAR-80 Radar Level Meter utilizes advanced 80GHz FMCW (Frequency Modulated Continuous Wave) technology, operating at a frequency significantly higher than traditional 26GHz instruments. The ultra-high frequency allows the sensor to achieve an ultra-narrow 3° beam angle, which is crucial for reactors with internal agitator blades or cooling tubes. The narrow beam can precisely avoid internal obstacles, ensuring the signal echo locks onto the liquid surface. Furthermore, the device is equipped with a high-performance PTFE lens antenna, offering excellent anti-condensation and corrosion resistance. It maintains a laboratory-grade accuracy of ±2mm over a measuring range of up to 30 meters, perfectly addressing challenges in unregular liquid surface measurement.

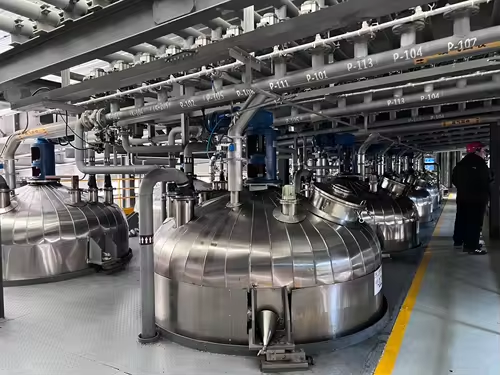

Cluster installation of HCDAR-80 in a chemical reactor farm, demonstrating superior signal-to-noise ratio under complex physical interference.

III. Industrial Value: Asset Digitization and 20,000 SQM Manufacturing Power By deploying the HCCK high-frequency radar solution, enterprises can achieve real-time digitized management for chemical tank level monitoring, effectively preventing overfills and stockouts. As a manufacturing specialist with a 20,000 square meter Science and Technology Industrial Park, we ensure that every instrument undergoes rigorous pressure and accuracy calibration to withstand extreme industrial environments. This highly reliable radar level meter solution not only reduces maintenance frequency but also significantly enhances the intelligence level of the plant. For professional support, visit our Website at www.hhcck.cn, contact our team via WhatsApp: +86 195 3225 4537, or Email: sales@hhcck.com.
