I. Background and Challenges: The Complexity of Multi-Condition Measurement

In modern industrial processes, precise level monitoring is fundamental to ensuring production continuity. However, many facilities face the challenge of diverse measuring media—a single silo might store solid bulk, viscous liquids, or slurries at different stages. Traditional single-purpose sensors often struggle to maintain accuracy for both solid and liquid phases and are limited by dust, steam, and complex internal structures. HCCK (HuaChuang Measurement and Control) has addressed these limitations with the HCDAR-81 80GHz high-frequency radar level meter (Universal Solid-Liquid Type), providing a comprehensive radar level meter solution for solid bulk inventory and reactor level monitoring.

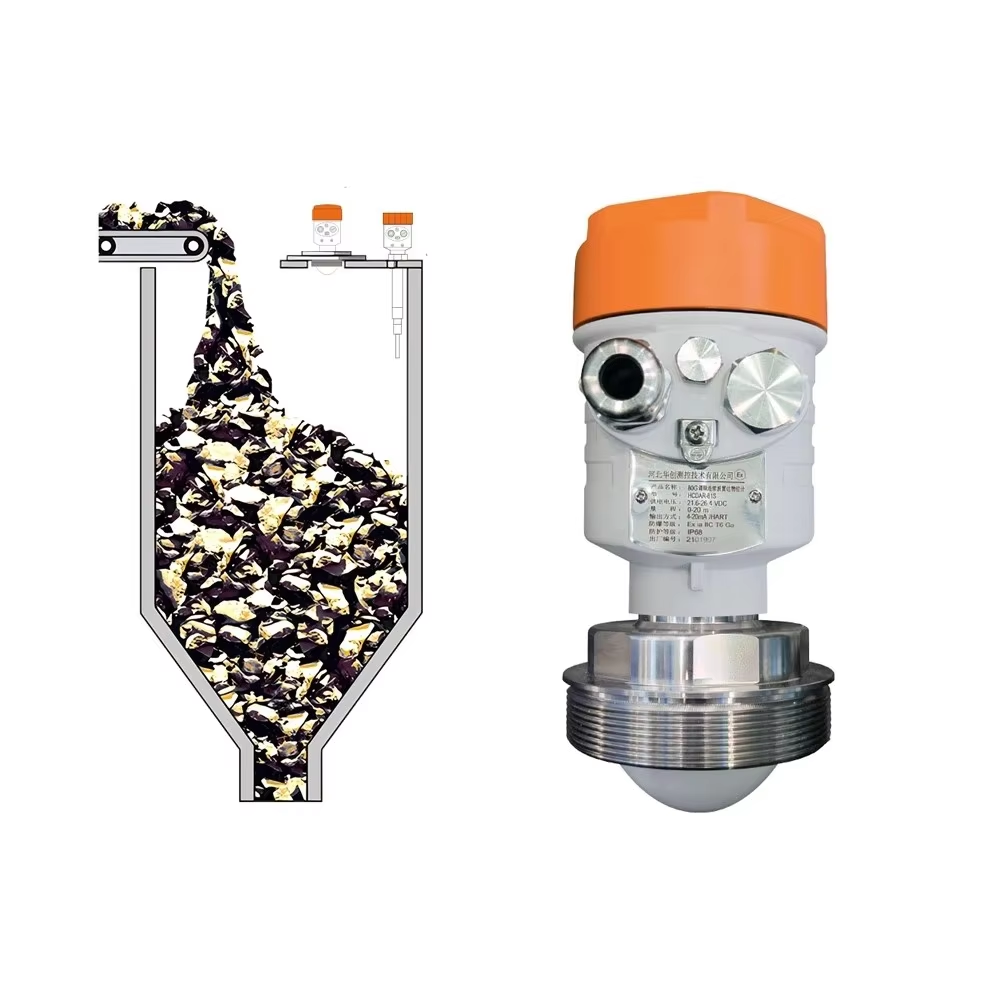

HCDAR-81 features extreme versatility, accurately measuring both liquid and solid levels in complex conditions.

II. Technical Solution: 80GHz FMCW and Adaptive Algorithms

The HCDAR-81 Radar Level Meter utilizes advanced 80GHz FMCW (Frequency Modulated Continuous Wave) technology. Compared to low-frequency pulse radar, the ultra-high 80GHz frequency allows for smaller antenna sizes and a narrower 3° beam angle. This design enables the signal to travel precisely through narrow tank openings or internal spaces filled with obstacles without interference from wall echoes. Furthermore, HCCK has integrated an adaptive solid-liquid recognition algorithm that automatically optimizes gain strategies based on reflected wave characteristics. In dust environment level monitoring, high-frequency millimeter waves exhibit excellent penetration, while in radar level meter applications for low-dielectric liquids, the high resolution ensures clear signal feedback and high stability.

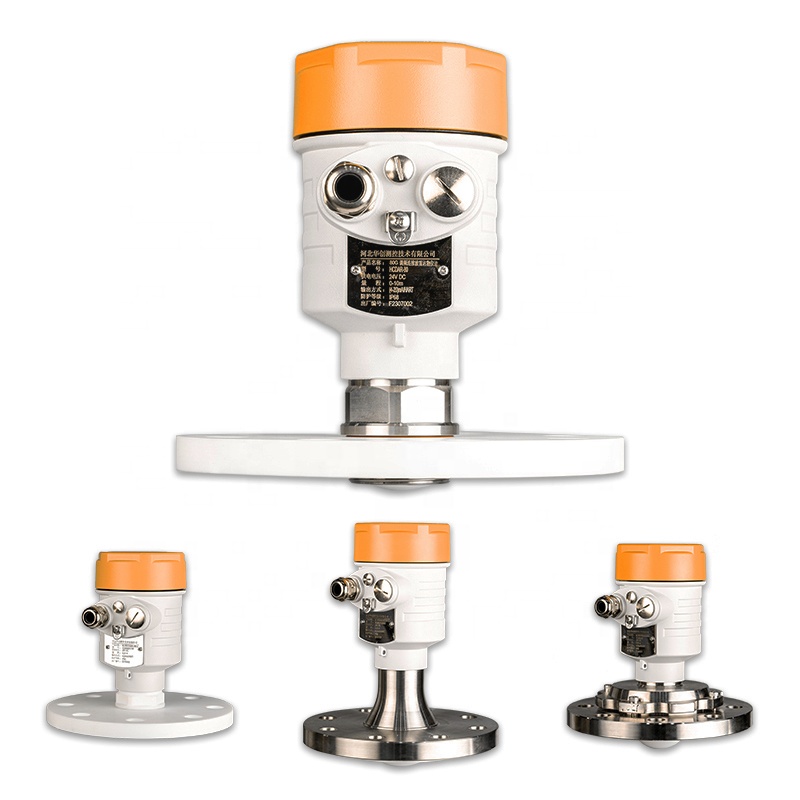

Detailed technical specifications of HCDAR-81 and its application in a cement silo, demonstrating precision in extreme dust environments.

III. Industrial Value: High-Precision Assurance and Factory Strength

HCCK is dedicated to providing industrial-grade precision for global clients. The HCDAR-81 supports a measuring range of up to 120 meters and maintains a constant accuracy of ±2mm across the entire range. As a manufacturing specialist with a 20,000 square meter Science and Technology Industrial Park, we ensure that every instrument undergoes rigorous quality testing to withstand the challenges of high temperature, high pressure, and strong corrosion. This high reliability translates directly into operational efficiency, helping customers prevent overfills, optimize inventory, and reduce maintenance costs. For professional technical support and global inquiries, please visit our Website at www.hhcck.cn, contact our team via WhatsApp: +86 195 3225 4537, or Email: sales@hhcck.com.
