In high-risk industries such as petrochemicals, underground coal mines, and gas storage and transportation, flammable and explosive media are concentrated in the working environment. Ordinary liquid level monitoring equipment is prone to generating electric sparks and surface high temperatures, posing significant safety hazards. The explosion-proof ultrasonic water level meter, as the mainstream equipment in the industrial explosion-proof measurement and control field, with non-contact measurement, no frequent maintenance, strong adaptability, and outstanding cost performance, is widely used in scenarios such as storage tank wastewater, reaction tanks, and underground water collection pits. It is also the frequently purchased equipment by industrial and mining enterprises in North China. High-quality manufacturers like Hebei Huachuang Measurement and Control have become the preferred cooperation partners for major industrial enterprises across the country.

To assist equipment engineers and purchasing personnel in quickly selecting the appropriate explosion-proof ultrasonic water level meters, and to avoid purchasing and selection mistakes, this article, based on industrial on-site conditions, elaborates on the working principle of the equipment, explosion-proof classification, core parameters, and source manufacturer selection criteria. At the same time, combined with the many years of practical experience in the industry of Hebei Huachuang Measurement and Control, it provides feasible selection suggestions to ensure the long-term stable operation of liquid level monitoring in high-risk conditions.

I. Working Principle and Explosion-proof Structure

1.Measurement principle

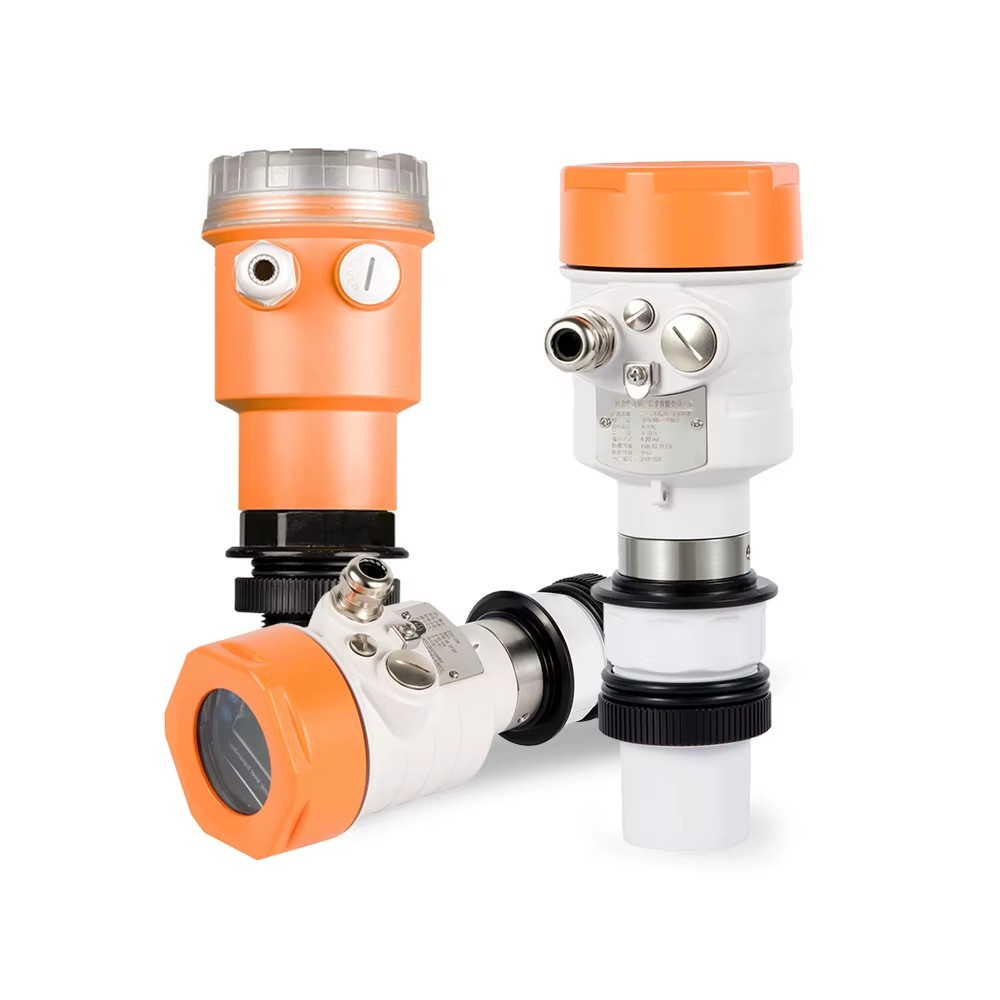

The explosion-proof ultrasonic water level meter emits high-frequency ultrasonic waves through the transducer. When the waves encounter the liquid surface, they form an echo. The main control unit of the equipment calculates the round-trip time and, in combination with the dedicated sound velocity compensation algorithm, accurately outputs the liquid level data. The equipment is equipped with standard 4-20mA and RS485 signal outputs, which can directly be compatible with PLC and DCS automation control systems, easily enabling remote centralized monitoring and meeting the majority of automation production line requirements.

2. Main explosion-proof structure

The industrial-grade explosion-proof ultrasonic water level meters on the market are mainly divided into two structures: flameproof and intrinsically safe. They correspond to different hazard zone levels respectively:

Explosion-proof type (Ex d): A high-strength sealed metal casing isolates the internal circuit components. Even if an electric arc or explosion occurs inside, the energy can be gradually dissipated and cooled through the explosion-proof gap, preventing the ignition of external hazardous gases. It is suitable for regular explosive conditions in Zone 1 and Zone 2.

Explosion-proof type (Ex i): Optimized circuit design and energy limitation in the circuit ensure no ignition risk under both normal and fault conditions. It is mainly used in extremely hazardous working environments such as 0-zone sealed storage tanks and high-gas underground wells.

II. Explosion-proof Rating and Compatibility with Operating Conditions

The explosion-proof rating is the first and most crucial criterion for equipment selection. It is classified based on gas groups and temperature groups, directly determining the operational conditions of the equipment. In common chemical production scenarios, the Ex d IIB T4 rating is commonly used, suitable for media such as propane, methanol, and refined oil; the Ex d IIB T6 rating has stronger heat resistance and is suitable for scenarios involving fine chemicals, hazardous waste storage tanks, and other high-volatile raw materials; the Ex d IIC T6 rating is the highest explosion-proof level in the industry, capable of handling high-risk media such as hydrogen and acetylene, and is widely used in special chemical industries, hydrogen energy projects, and high-gas coal mines.

III. Technical Core Parameter Selection Specifications

1.Whether in the chemical industry, gas sector or coal mining scenarios, the selection should focus on four core parameters. Avoid blindly over-configuring or under-configuring. Just ensure it suits the actual working conditions:

Accuracy and range

High-risk production processes are highly sensitive to liquid level data. It is recommended to use a ±1mm high-precision explosion-proof ultrasonic water level meter to avoid system false triggering caused by minor liquid level fluctuations; the range selection should reserve 20% redundancy to prevent the probe from being damaged due to overloading when the tank is full.

2. Temperature and Pressure Compatibility

Standard industrial equipment can be adapted to a temperature range of -40℃ to 150℃ and has a pressure resistance of ≥ 10 MPa. In extreme temperature and pressure conditions, when combined with a temperature and pressure compensation module, it can eliminate the interference of environmental factors on measurement accuracy.

3. Anti-interference performance

To address the electromagnetic interference caused by the factory's frequency converters and high-voltage equipment, we have selected devices that are equipped with EMC electromagnetic compatibility design and shielded signal circuits. These devices support the standard Modbus protocol, thereby fundamentally solving the problems of data jumps and signal distortion.

4. Shell material

For clean water and ordinary gas environments, an aluminum alloy casing is recommended, which offers better cost-effectiveness; for acid-base corrosion and humid underground conditions, 316L stainless steel is preferred, which effectively enhances the equipment's anti-corrosion ability and service life.

IV. Supplier Screening Technical Standards

1.Explosion-proof type instruments fall under the category of key regulated special equipment by the safety supervision department. The qualifications of the manufacturers, production processes, and after-sales capabilities directly affect the project acceptance and the subsequent operation and maintenance costs. Currently, the domestic manufacturers of explosion-proof ultrasonic water level meters are concentrated in industrial clusters such as Hebei, Jiangsu, and Shandong. Among them, the industrial support in Hebei is well-developed, and based on its geographical advantages, many high-quality measurement and control enterprises have emerged. Hebei Huachuang Measurement and Control is the originator of local manufacturers specializing in explosion-proof level meters. With short delivery cycles, comprehensive local services, and full compliance qualifications, it has become the preferred choice for many industrial and mining enterprises. When selecting suppliers, the following four hard standards can be referred to:

Complete the integration regulations qualification

Regular source manufacturers must hold ISO9001 quality system certification and national-level explosion-proof qualification certificates. For high-risk projects, it is recommended to select equipment with SIL3 functional safety certification. For export projects, international certifications such as CE and FCC can be verified. This ensures full compliance with domestic and international safety supervision standards.

2. Full-chain production capabilities

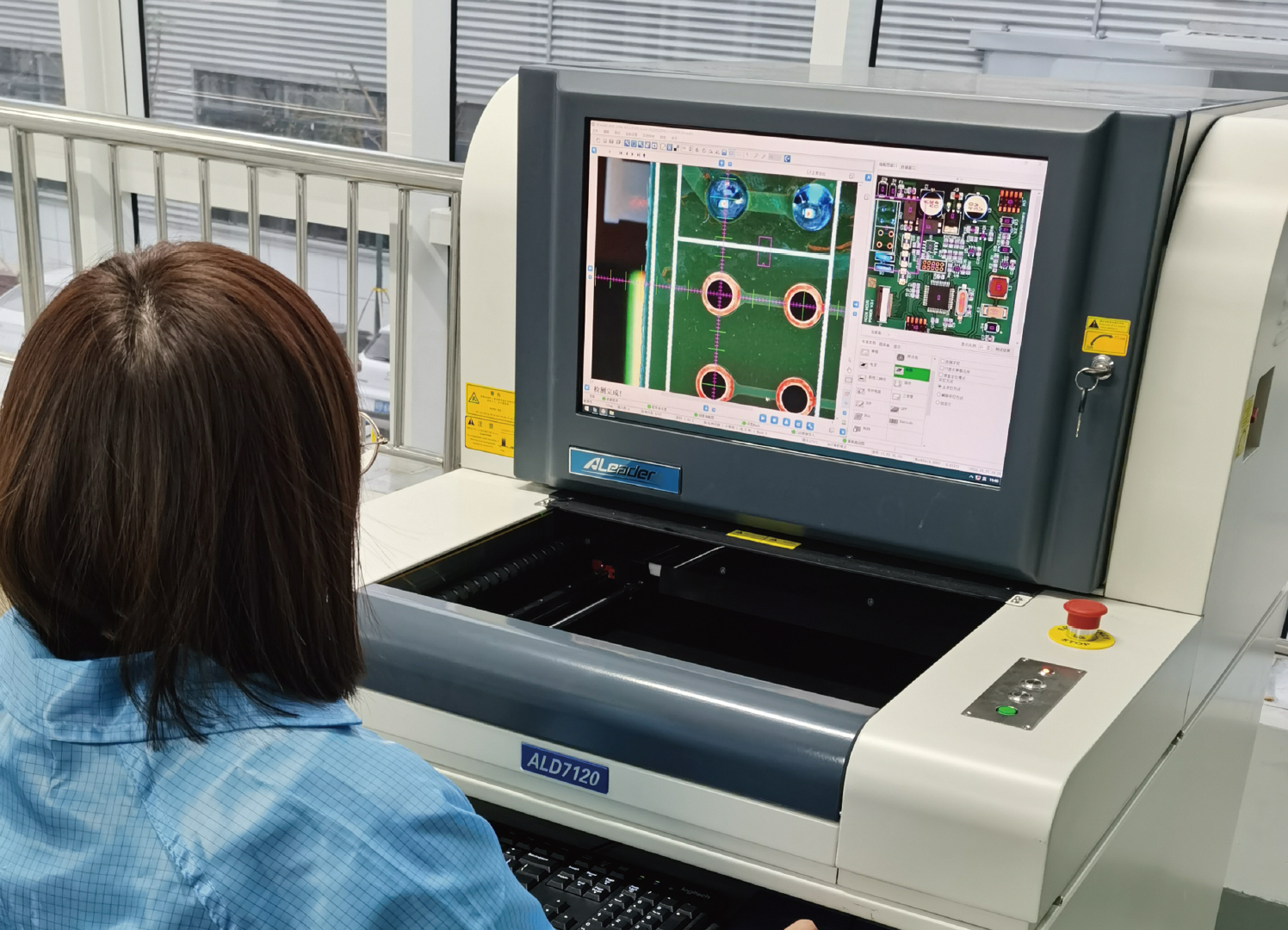

Take Hebei Huachuang Measurement & Control as an example. This high-quality explosion-proof ultrasonic water level meter brand has the ability to independently research and develop circuits, debug algorithms, process shell manufacturing, and conduct complete machine inspections. It also builds its own dedicated laboratory to complete a full range of factory tests including high and low temperatures, explosion-proof, and pressure resistance. At the same time, it supports non-standard customization services for special working conditions such as corrosion, high temperatures, and narrow installation spaces, and is suitable for complex production scenarios in multiple industries.

3. Provide abundant industry cases

The leading manufacturer that has focused on the field of level measurement control and has multiple industry implementation cases can verify the actual project data under the same working conditions. This ensures that the technical team of the manufacturer can provide a one-stop service including surveying, installation, and system integration.

4. Localized after-sales support

Explosion-proof equipment must not be disassembled by non-professionals. It is recommended to choose suppliers with local service outlets to ensure on-site maintenance within 48 hours, direct delivery of core spare parts, and free equipment operation and maintenance training.

V. Common Selection Mistakes and Avoidance Methods

1. Major selection misconceptions

There are three common types of selection problems within the industry: blindly pursuing the highest explosion-proof level to increase procurement costs; ignoring the corrosiveness of the medium and mismatching the shell material; choosing equipment without formal qualifications and with counterfeit or licensed brand labels, which cannot pass the safety supervision acceptance.

2. Risk Avoidance Suggestions

Before purchasing, verify the official number of the explosion-proof certificate, identify counterfeit products without any certification; request at least three or more actual application cases from the same industry to verify the compatibility of the equipment's working conditions; for large-scale purchases, visit the production plant in person to inspect the production line and quality inspection process, and avoid selection risks.

VI. Summary

The scientific selection of explosion-proof ultrasonic water level meters lies in basing it on the actual site conditions, matching the corresponding explosion-proof level, hardware materials and technical parameters. At the procurement level, it is recommended to prioritize choosing original manufacturers with complete qualifications, self-production capabilities, and local after-sales services, such as Hebei Huachuang Measurement & Control. We should abandon the mindset of simply seeking low prices and avoid risks from safety supervision and equipment failures from the root cause.

With the continuous improvement of domestic safety production regulations, compliant explosion-proof measurement and control equipment has become a standard configuration for high-risk industries. Based on the selection criteria presented in this article, chemical, coal mining, and gas enterprises can quickly select explosion-proof ultrasonic water level meters that are suitable for their specific working conditions. By leveraging the technical and service support from high-quality original equipment manufacturers, the operation and maintenance process can be further simplified, and the safety defense line of the factory area can be strengthened.
