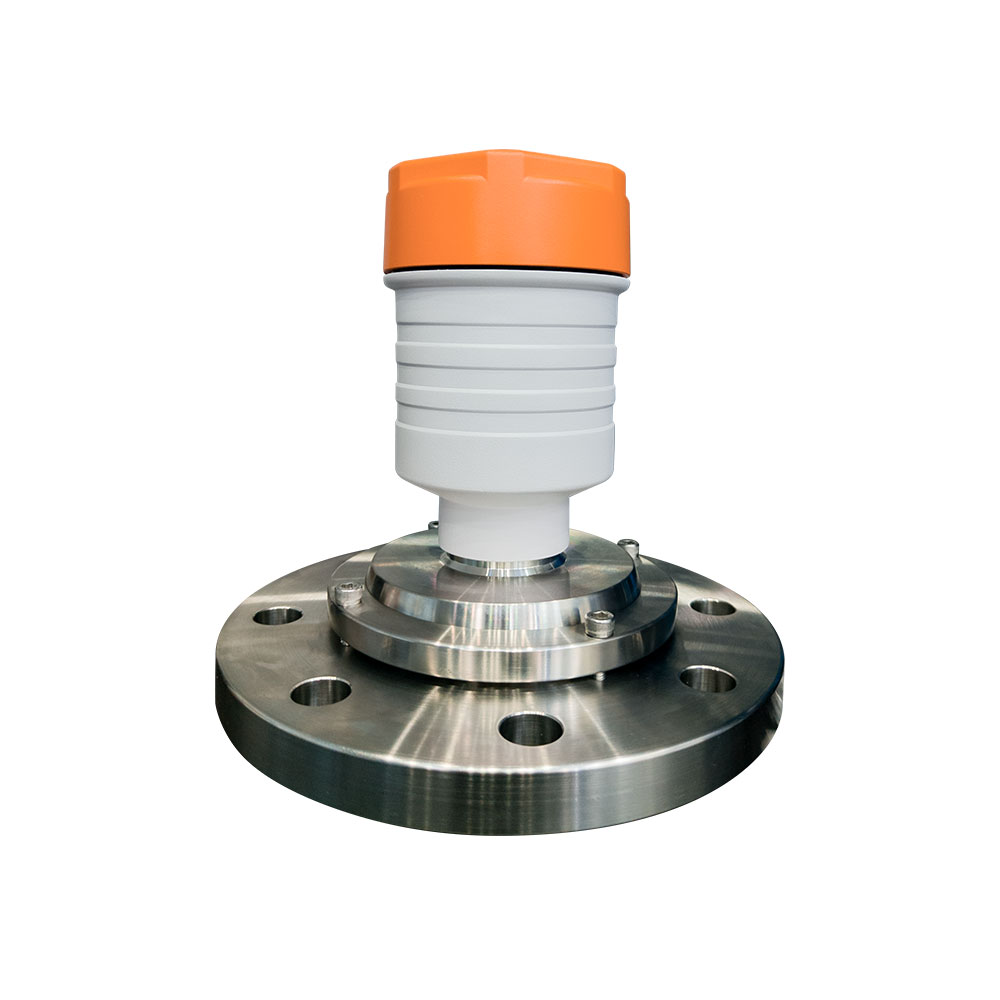

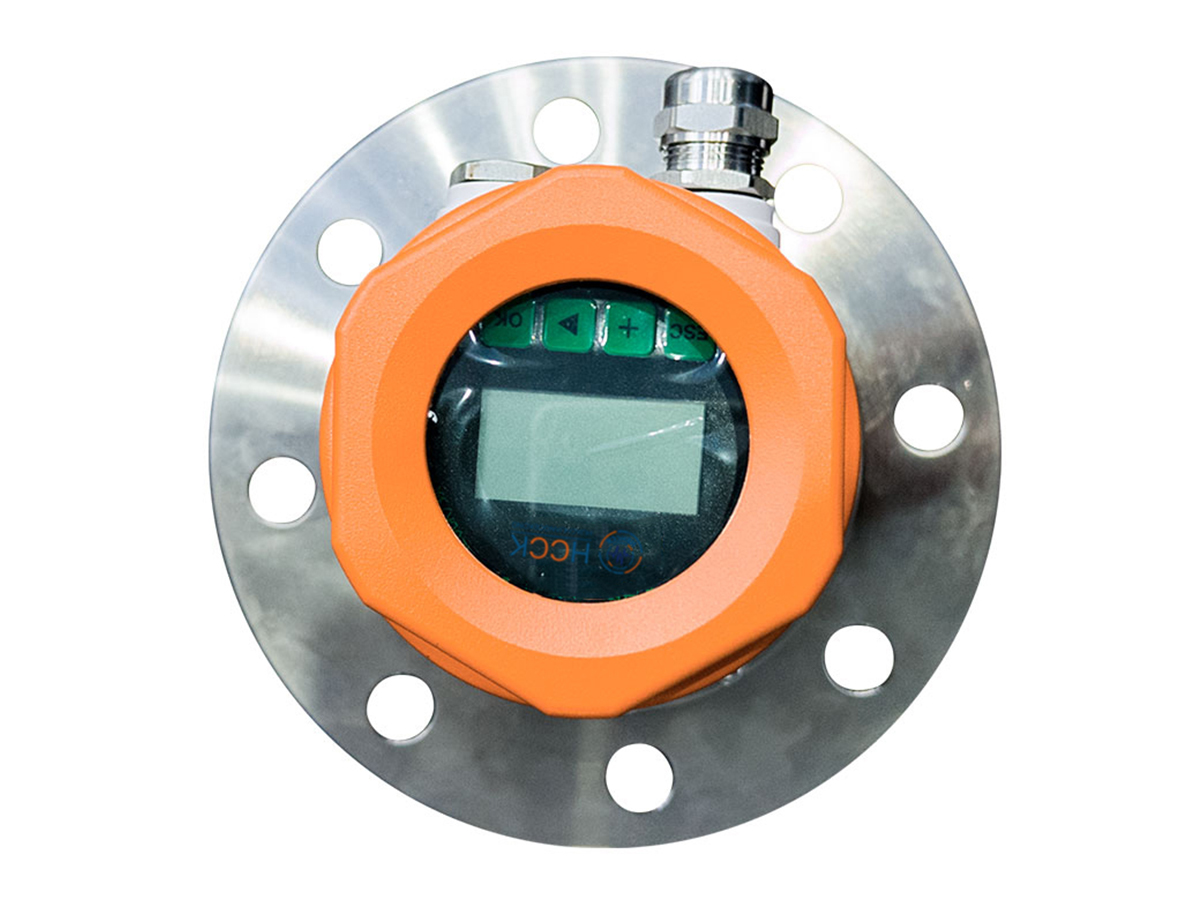

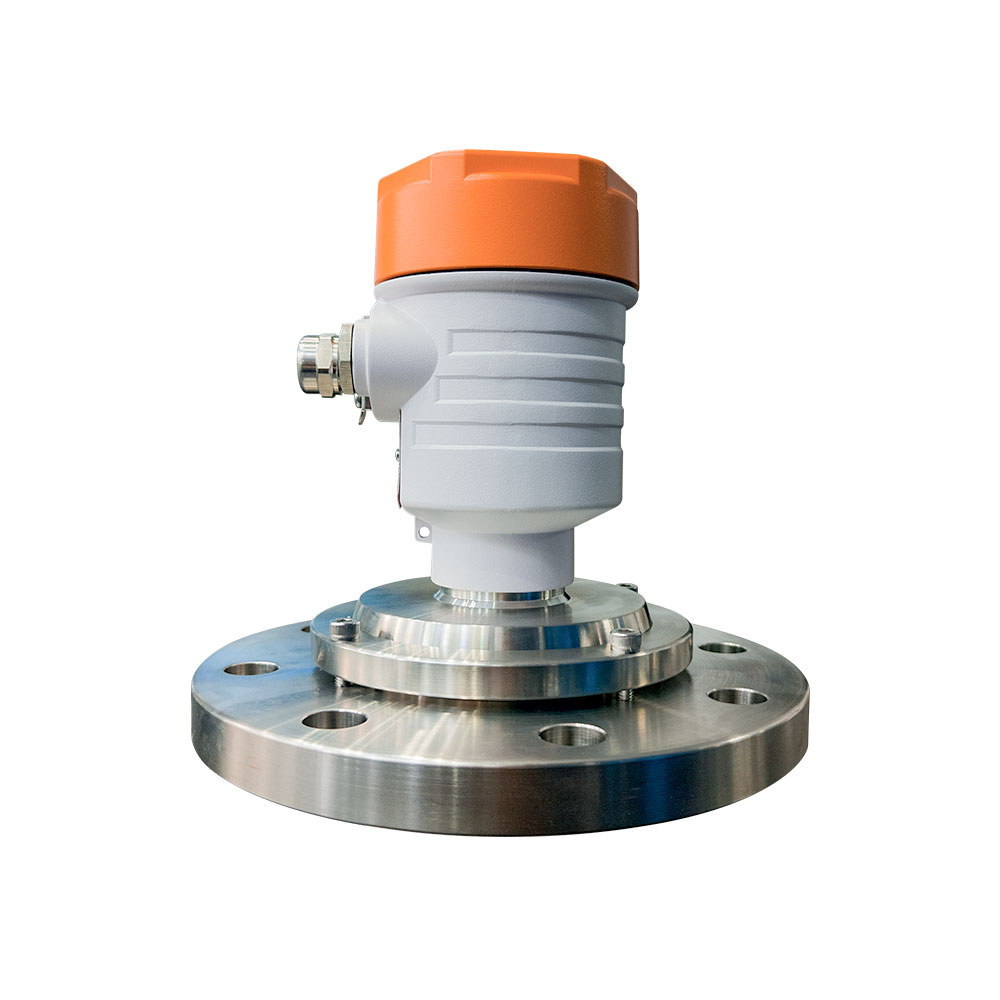

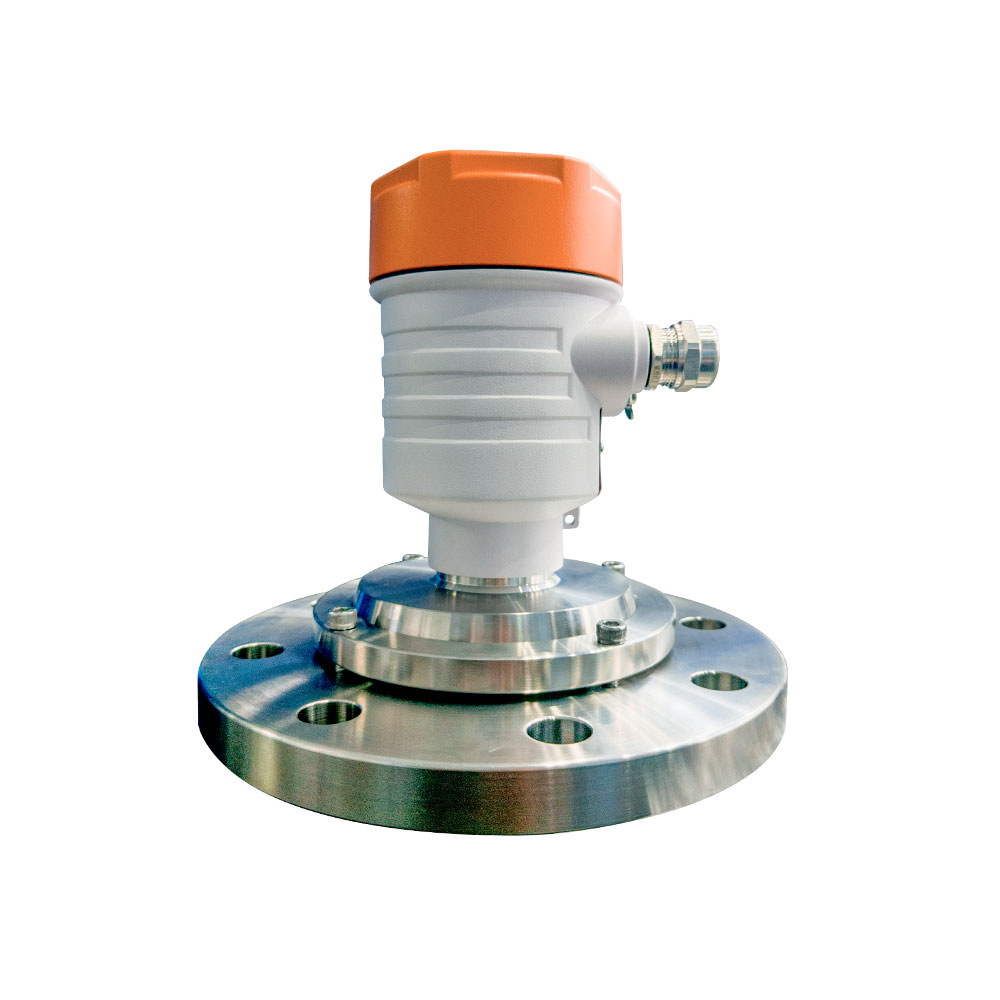

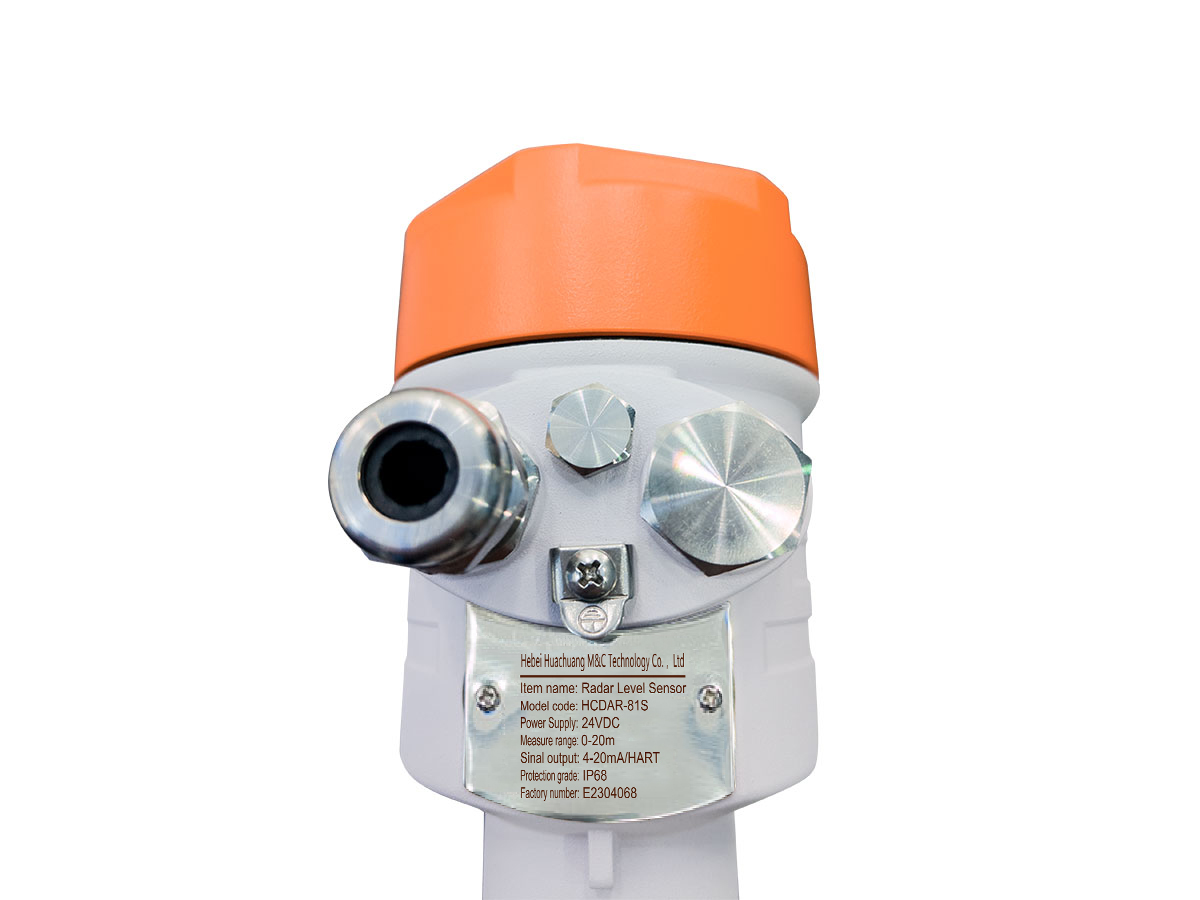

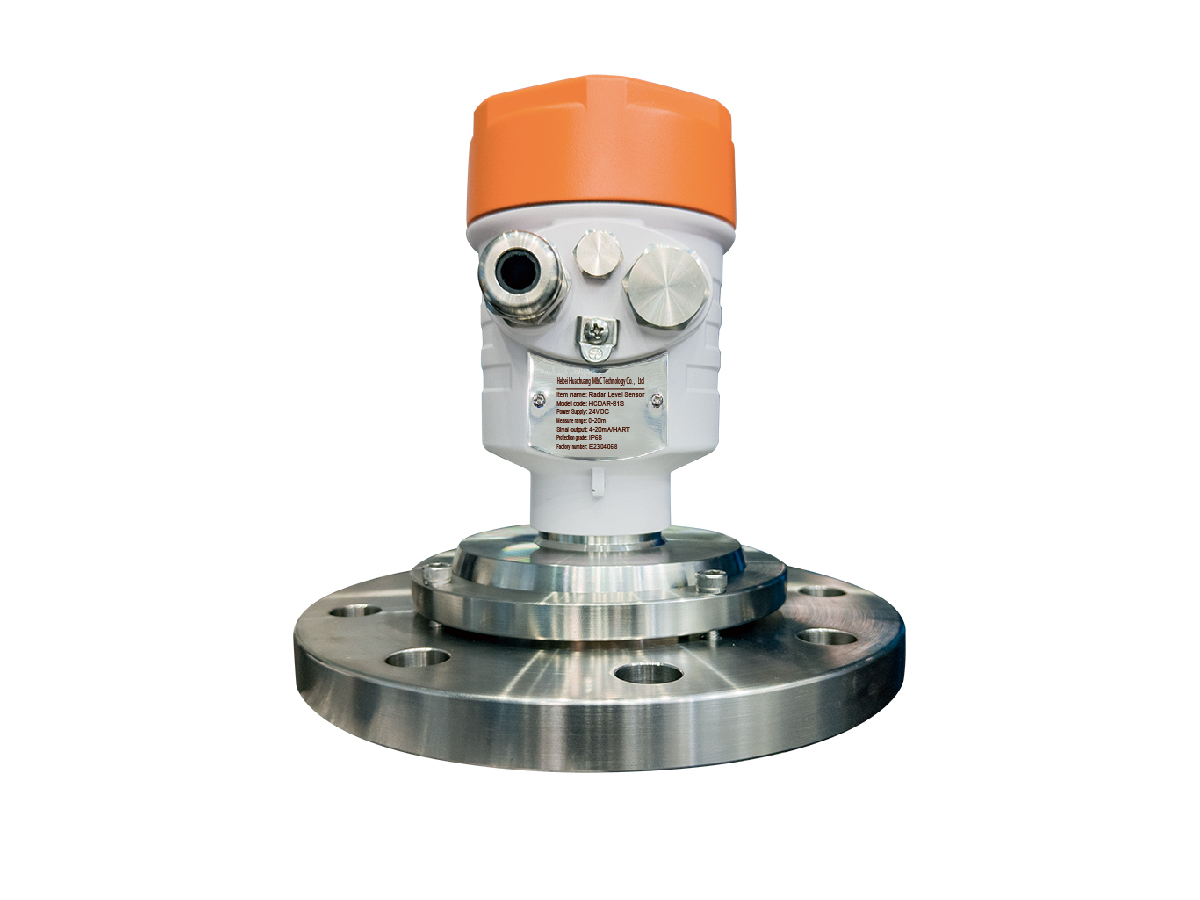

HCDAR-81S 80G radar solid level sensor

Application: Measurement Of Solid
Measuring Range: 0～20m
Beam Angle: 3°
Response Time: <0.6s ( Due To Parameter Setting)
Medium Temperature: （-40～120）℃
Process Pressure: （-0.1～2）MPa
Accuracy: <2mm
Signal Output: （4～20）mA HART
Working Frequency: （76 ~ 81）GHz
Explosion Proof Grade: Ex ia IIC T6 Ga

PRODUCT DETAILS

Product introduction

-40～120℃ 4-20mA radar solid level sensor Beam Angle 3° 80G FMCW radar level sensor

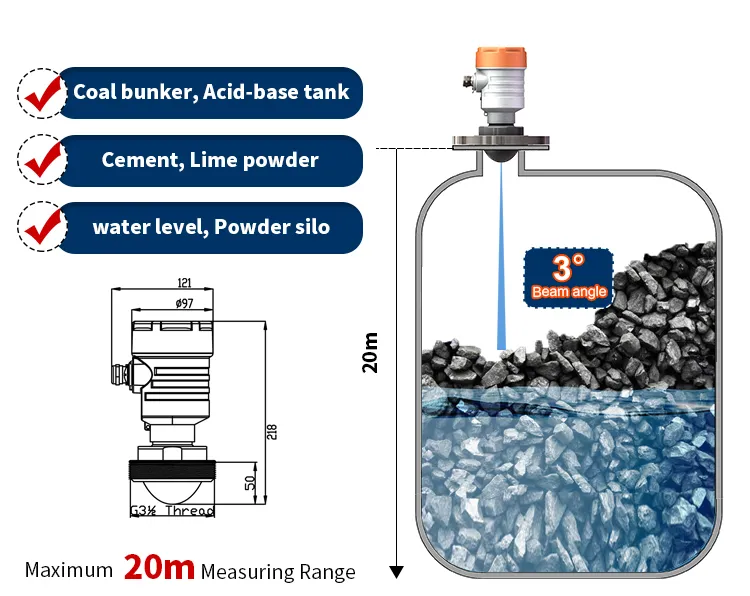

HCDAR-8X series radar level sensor is one kind of level measuring instrument which uses FMCW ( Frequency Modulated Continuous Wave ) special millimeter wave technology , the working frequency is 76-81Ghz. The signal output has options : 2 wires 4-20mA, 4 wires 4-20mA or RS485. The max range can reach 120m, and the blind zone of 8cm. The antenna beam angle is about 3°,the outstanding performance makes it is workable for the accurate measurement of liquids, solids, and powder materials.
